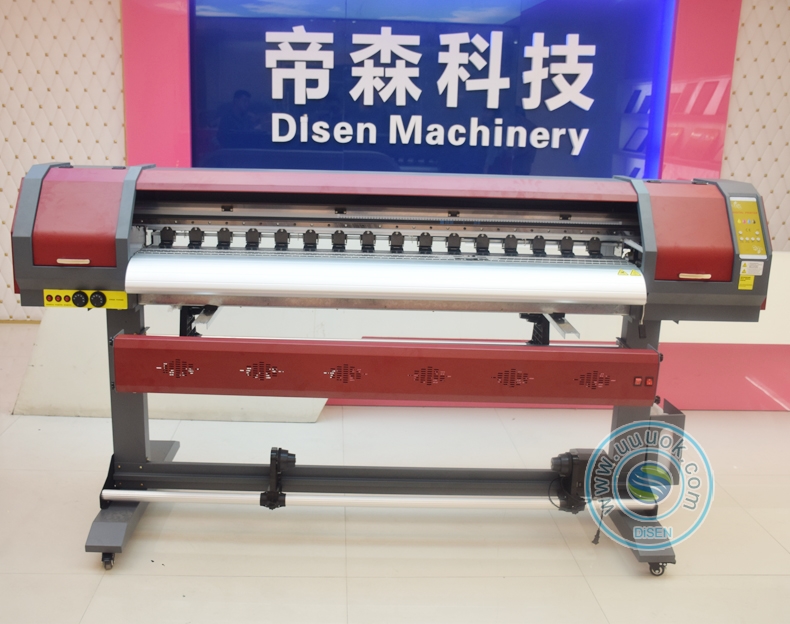

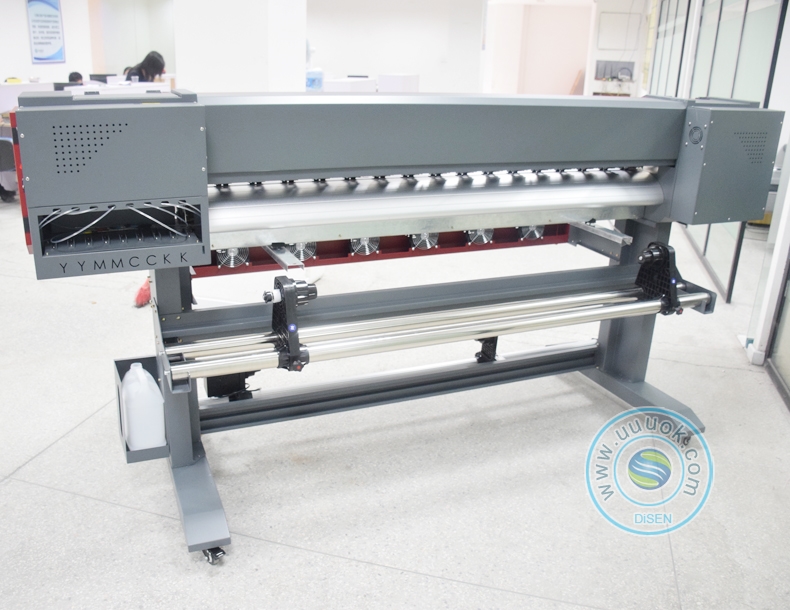

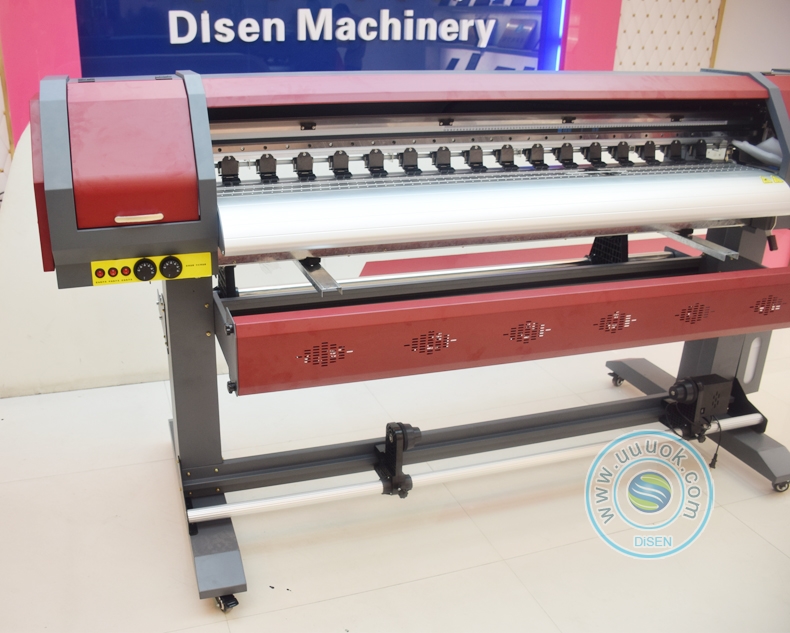

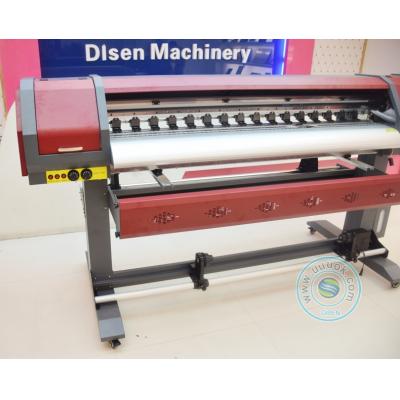

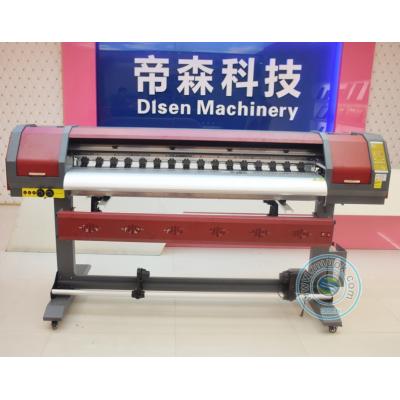

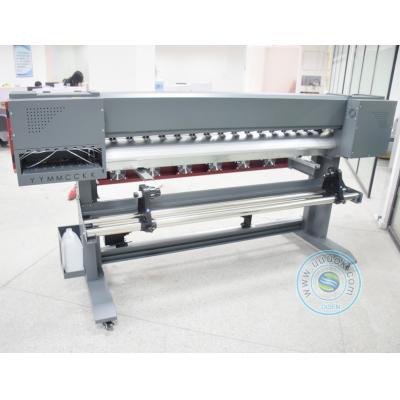

1604-R high resolution eco solvent printer with dx5 print head

1.6 R Series

Unique Strong Fast

New machine body  New look

Great print system

Durable machine parts

Specification

Print Width:

1.6M

Ink:

Water Base/Eco-solvent Ink

Material:

Film·Photo Paper·PP Paper,etc

RIP:

Maintop/Photoprint

Image Format:

BMP/TIFF/JPG/EPS/PDF

Operational:

Windows 7

Power:

50hz/60hz 110V/220V 10A

Enviroment:

18℃-28℃  50%-75%

Language:

Chinese/English

Take Up System

Optional

GW:

250KG

Machine Size:

2.6M(L)*0.7M(W)*1.27M(H)

Package Size:

2.7M(L)*0.76M(W)*0.76M(H)

Model

1604-R/1671-R

1626-R

1646-R

Print Head

DX5/DX7

V540

V540

Number Of Head

1

2

4

Resolution

1440DPI

Color

4

6

4

Speed

2PASS

25m²/H

Prodution:17m²/H

Prodution:30m²/H

4PASS

15m²/H

6PASS

9m²/H

HD Model:12m²/H

HD Model:20m²/H

8PASS

4m²/H
